HABEGGER-Accessories: interceptors

 techsheet2Leaflet



Safety first! Whenever people or valuable items are on suspended platforms, wherever it is necessary to rule out all risks, it is best to be double-sure about safety. BLOC-STOP and HIT-STOP operate using the clamping jaw principle. The protective device takes effect automatically within a matter of milliseconds as soon as the running direction of the hauling rope or the additional safety rope changes. The load can only be deliberately lowered after this by first operating the clamping lever or bracket.

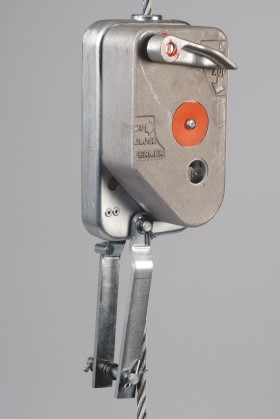

BLOC-STOP
For the most exacting requirements, with automatic overspeed mechanism.

Article no.
 Model
SWL - safe
working load
Rope Ø
Speed
Weight
060.478.028
 BSO 500
500 kg
8 mm
18 m/min
4,5 kg
060.478.031
 BSO 1040
1000 kg
11 mm
18 m/min
4,5 kg

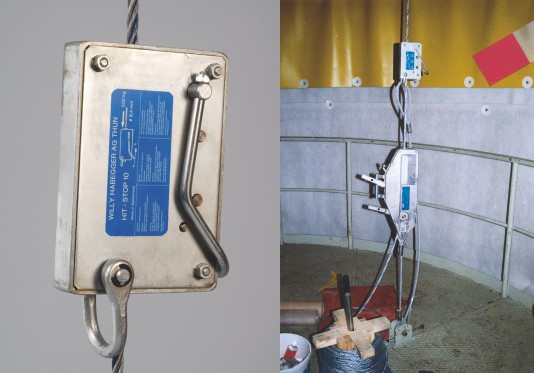

HIT-STOP
Simpler anchorage and anti-slip device for use with manual wire rope hoists.

Article no.
as additional safety for
Weight
00483
HABEGGER HIT 6
1,6 kg
00440
HABEGGER HIT 10
1,8 kg
