HABEGGER Accessories
for manual wire rope hoists
|
|
 Leaflet
|
|

|
|
Swivellling load hook
with locking bar and
folding split pin
|
Case / Storage box |
|
| Article no. |
HIT-06 |
HIT-10 |
HIT-16 |
HIT-32 |
| Lever tube |
00660 |
00750 |
00860 |
00860 |
| Swivelling load hook with locking bar |
4357.1001.0 |
4357.1001.0 |
4357.1601.0 |
4357.3200.0 |
| Folding split pins |
2202.1001.1 |
2202.1001.1 |
2202.1001.1 |
2202.1001.1 |

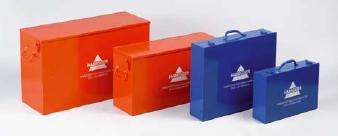

| Case / storage box |
00670
43x28x11 cm |
00770
55x44x12,5 cm |
060.477.300
67x21,2x36 cm |
060.477.301
71x27,5x45,5 cm |
|
| |
|
Shear pins
| for wire rope hoist |
Ø |
Length |
Article no. |
| HIT-06 |
5,5 mm |
20 mm |
00632 |
| HIT-10 / T-15 |
7 mm |
22 mm |
00252 |
| HIT-16/32 |
7,5 mm |
29 mm |
00835 |
| T-7 |
6 mm |
14 mm |
00354 |
|
|
Shear pin set
Material: Brass |
| Contents |
Article no. 00590
|
| 10 x 00632 |
HIT-06 |
| 50 x 00252 |
HIT-10 / T-15 |
| 50 x 00835 |
HIT-16/32 |
| 10 x 0543.1403.1 |
Countersunk screw
M6 x 10 |
| 10 x 2003.1010.1 |
Washer 90° M6 |
|
