HABEGGER hydraulic drives
|
|
 Leaflet
|
|
HABEGGER manual wire rope hoists HIT-16 and HIT-32 can be converted to hydraulic drive in a straightforward procedure. The direction is changed by shifting the cylinder attachment from the forwards to the reverse lever. The hydraulic unit is separate. One or two units can be operated at the same time, depending on the hydraulic drive.
The hydraulic groups are quick and easy to operate: Connect the hoses to the unit and the wire rope hoist. Start the motor or engine, operate the lever on the control valve and rope pulling starts straight away. The double-action cylinder is automatically controlled by the changeover valve. A pressure relief valve protects the wire rope hoist against overload.
|
| |
|

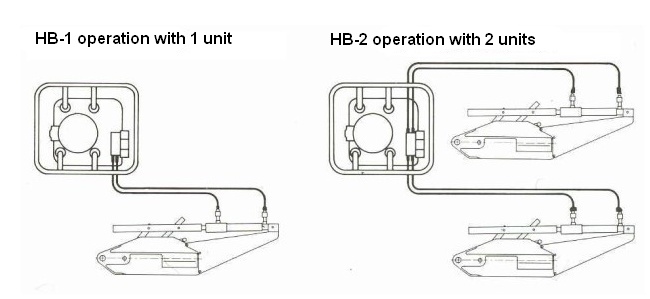

Scheme
|
| |
|
Wire rope hoist HIT-16/32 for hydrauc drive
|
| Technical Data |
HIT-16 H |
HIT-32 H
|
| Dimensions LxHxW |
98x36x12 cm |
111x40x15 cm |
| Rated force |
1600 kg |
3200 kg |
Speed
forwards/lift
reverse/lower |
1,2 m/min
2,0 m/min |
0,3 m/min
1,2 m/min |
| Weight without rope |
20,7 kg |
30,9 kg |
|
Dimension sheet |
Dimension sheet |
| Article no. |
HIT-16 H |
HIT-32 H
|
Unit with lever tube,
without rope |
00799 |
00899 |
| Support |
00857 |
00164 |
| Hydraulic cylinder |
00555 |
00158 |
|
| |
| |
|
Hydraulic groups
|
|

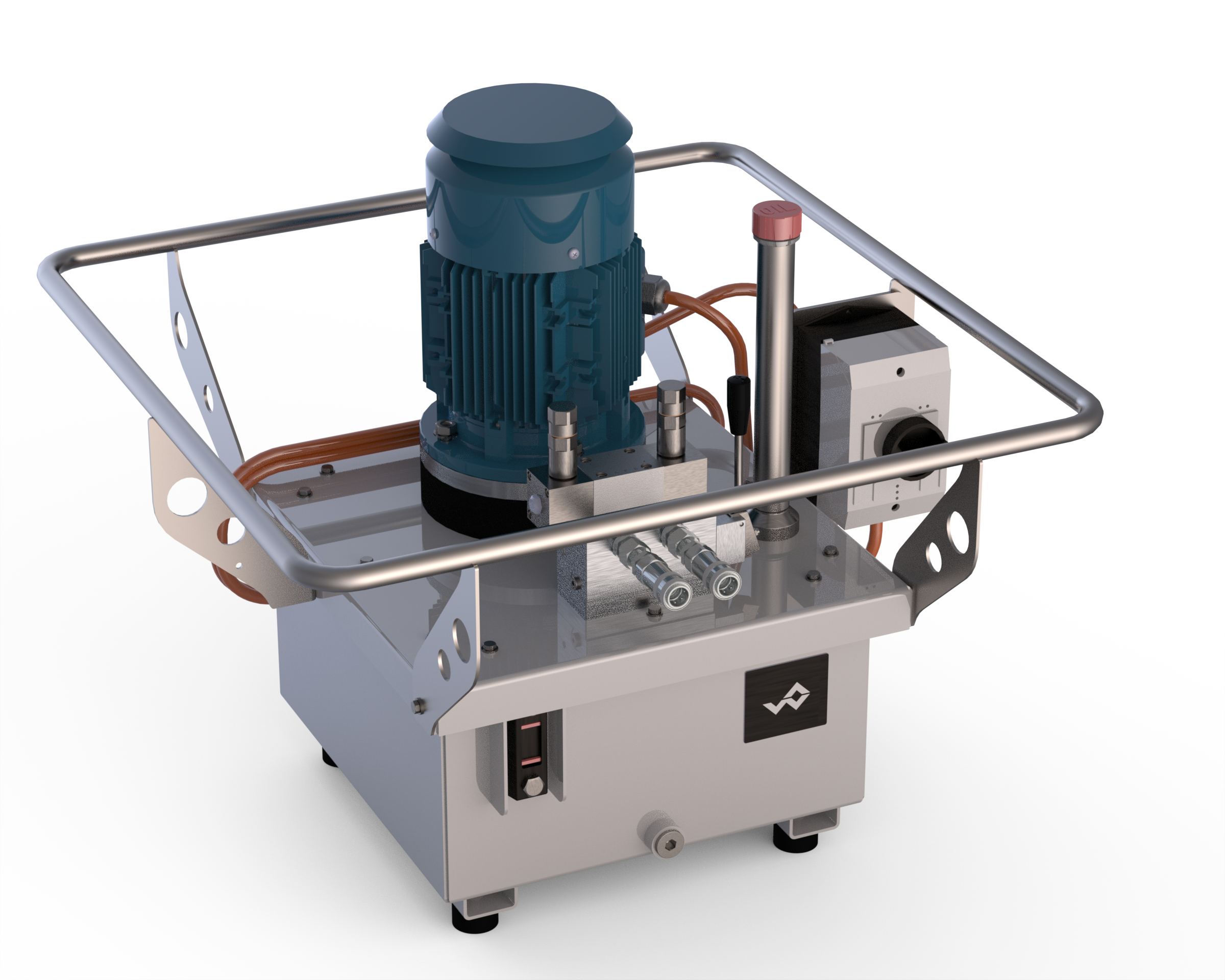

Hydraulic group HE with electric motor
|

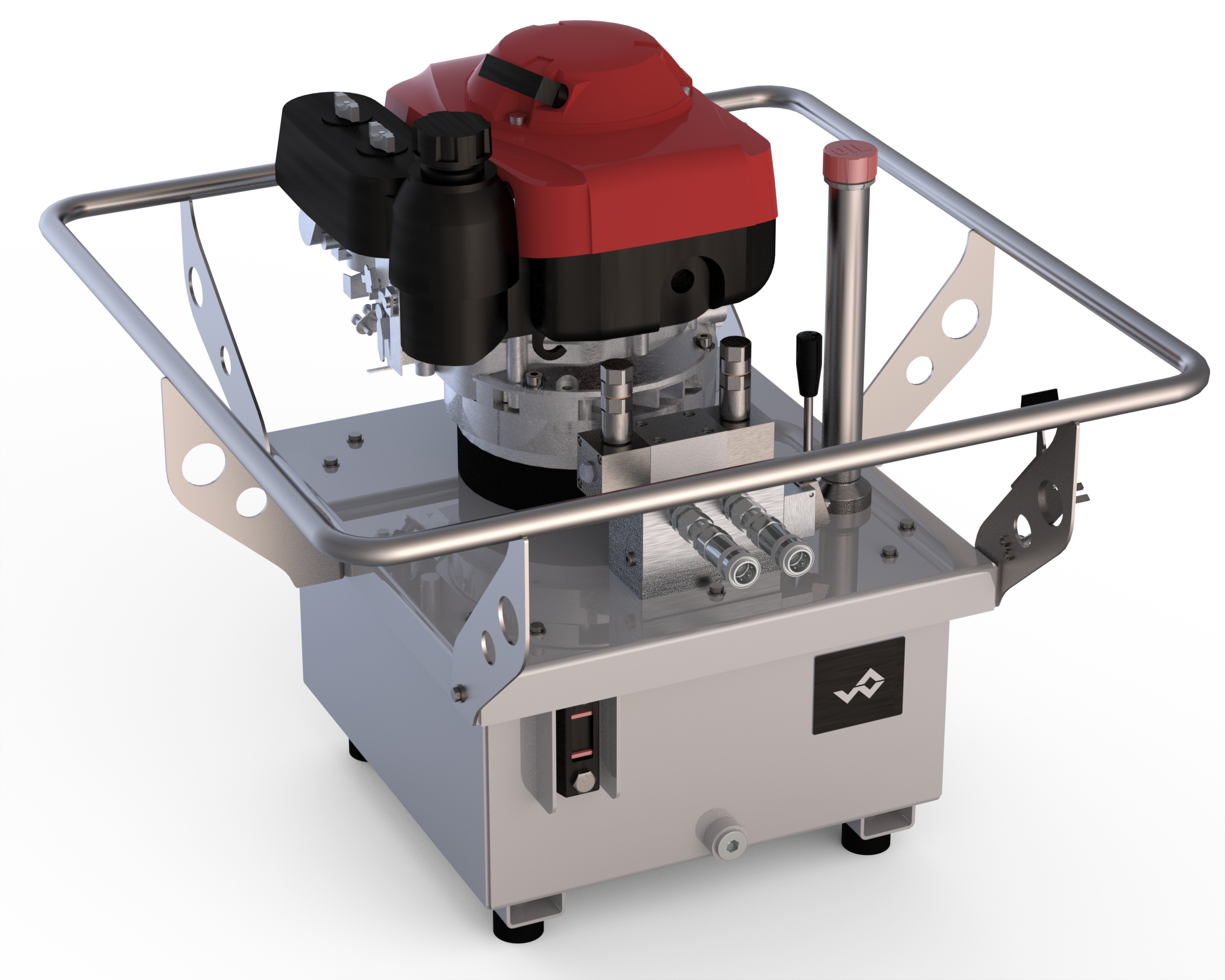

Independent hydraulic group HB with petrol engine
|
| |
with electric motor
400V / 50Hz |
with 4-stroke
petrol engine
|
| Type |
HE 1 |
HE 2 |
HB 1 |
HB 2 |
| Article no. |
10001151 |
10001152 |
10001153 |
10001061 |
| Connections for equipment |
1 |
2 |
1 |
2 |
| Capacity |
9 l/min |
2x 9 l/min |
9 l/min |
2x 9 l/min |
| Pressure |
168 bar |
168 bar |
168 bar |
168 bar |
| Tank content |
25 l |
25 l |
25 l |
25 l |
| Weight |
57 kg |
80 kg |
56 kg |
78.3 kg |
| Power |
1,5 kW |
3 kW |
2 kW |
6,6 kW |
|
| |
|
Accessories
|
| Description |
Article no. |
Dimensions |
Weight
|
Hydraulic hoses with quick disconnect connectors
- Internal Ø 9,5 mm
- Pressure max. 280 bar |
00450 |
3 m |
2,1 kg |
| 00451 |
5 m |
3,3 kg |
| 00452 |
10 m |
6,7 kg |
Hydraulic oil
in canister BP Bartran HV 32
- Viscosity 3,5 °E / 50° C |
00544 |
5 l |
5 kg |
| 00546 |
10 l |
10 kg |
Control block
for existing hydraulic systems
- 3/8" connection
- 5 - 15 l/min, 300/180 bar |
01611 |
- |
5 kg |
|
|
 Application with petrol engine
|
