HABEGGER HIT-32
The powerhouse of the manual wire rope hoists. Pulling force in excess of 3 tonnes.
|
|
 Leaflet
Dimension sheet
|
|
|
Technical Data
|
HIT-32 |
| Rated force (pulling, lifting, lowering) |
3200 kg |
| Overload protection at |
4800 kg |
| Weight without rope |
21,5 kg |
| Rope diameter |
16,2 mm |
| Effective rope breaking load |
16000 kg |
| Rope feed per double stroke |
30 mm |
| Load on lever at rated force |
50 kg |
|
|
Basic equipment
|
Article no.
|

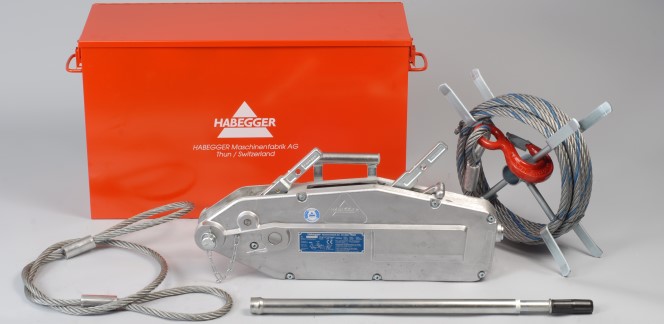

Unit with lever tube,
10 m rope on reel, 2 m strap
complete with storage case |
00898 |
Unit with lever tube,
10 m rope on reel |
00900 |
Unit with lever tube,
without rope |
00899 |
|
- Light alloy housing
- Anchorage bolts secured
- Overload protection by shear pin
- Exchangeable shear pins in carrying handle
- Expansion for hydraulic drive
- With carrying handle
- Lever tube can be pulled out
- Storage case available
|
|
Wire ropes on reel
Diameter
Weight |
16,2 mm
0,86 kg/m |
| Length in m |
Article no. |
| 10 |
01221 |
| 15 |
01222 |
| 20 |
01223 |
| 25 |
01224 |
| 30 |
01231 |
| 40 |
01232 |
| 50 |
01233 |
| 60 |
01241 |
| 70 |
01242 |
| 80 |
01243 |
| 90 |
01244 |
| 100 |
01245 |
|
Wire ropes without reel
Diameter
Weight
|
16,2 mm
0,86 kg/m |
| Length in m |
Article no. |
| 5 |
01201 |
| 10 |
01202 |
| 15 |
01203 |
| 20 |
01204 |
|
|
Wire rope configured
with thimble, an eyelet hook and locking bar on one end and a pointed end on the other.
Other lengths and configurations on request.
|
