HABEGGER HIT-06
The smallest and lightest unit for pulling, lifting and lowering.
|
|
 Leaflet
Dimension sheet
|
|
|
Technical Data
|
HIT-06 |
| Rated force (pulling, lifting, lowering) |
600 kg |
| Overload protection at |
900 kg |
| Weight without rope |
4,2 kg |
| Rope diameter |
6,4 mm |
| Effective rope breaking load |
3000 kg |
| Rope feed per double stroke |
30 mm |
| Load on lever at rated load |
25 kg |
|
|
Basic equipment
|
Article no. |

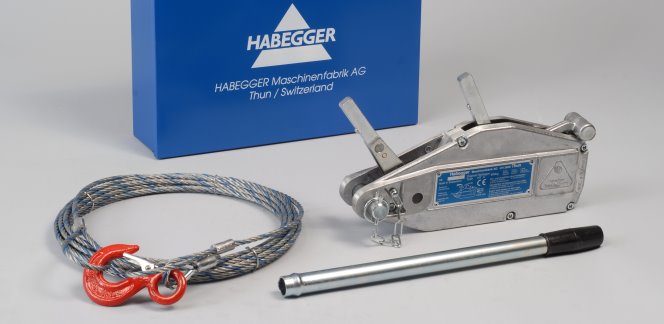

Unit with lever tube,
10 m rope and 1 m strap
complete with case |
00598 |
Unit with lever tube,
10 m rope and 1 m strap |
00600 |
Unit with lever tube,
without rope |
00599 |
|
- Light alloy housing
- Anchorage bolts secured
- Overload protection by shear pin
- Exchangeable shear pins in jaw opening lever
- Case available
|
| |
|
Wire ropes on reel
Diameter
Weight
|
6,4 mm
0,16 kg/m |
| Length in m |
Article no. |
| 10 |
02611 |
| 15 |
02612 |
| 20 |
02613 |
| 25 |
02614 |
| 30 |
02615 |
| 40 |
02616 |
| 50 |
02617 |
| 60 |
02618 |
| 70 |
02619 |
| 80 |
02620 |
| 90 |
02621 |
| 100 |
02622 |
|
Wire ropes without reel
Diameter
Weight |
6,4 mm
0,16 kg/m |
| Lenght in m |
Article no.
|
| 5 |
02601 |
| 10 |
02602 |
| 15 |
02603 |
| 20 |
02604 |
|
|
Wire rope configured
with thimble, an eyelet hook and locking bar on one end and a pointed end on the other.
Other lengths and configurations on request.
|
