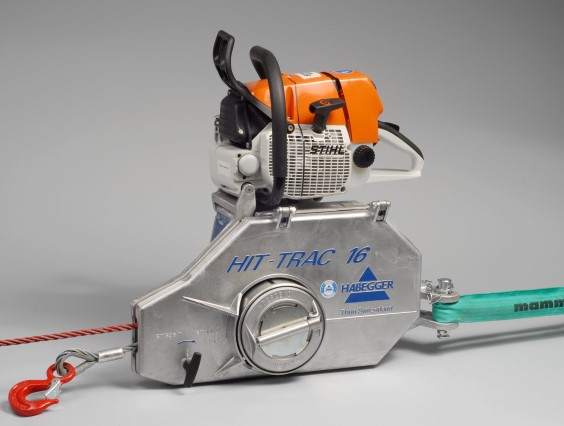

HABEGGER HIT-TRAC 16 B
High performance for heavier loads, with petrol engine. Loads can be lowered manually.
|
|
 Leaflet

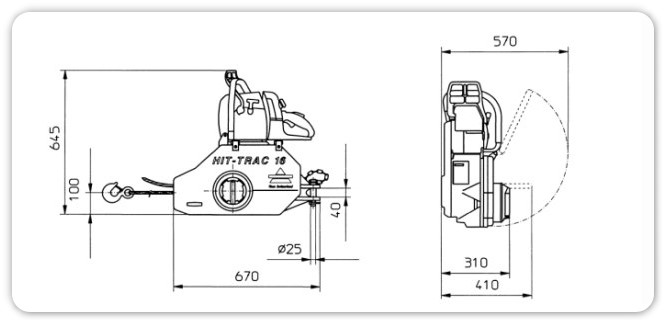

Dimension sheet
|
| |
| |
| Technical Data |
HIT-TRAC 16 B |
| Rated force (pulling, lifting, lowering) |
1600 kg |
| Overload protection by sliding clutch |
at approx. 20% overload |
| Rope speed |
max. 10 m/min |
| Rope length |
unlimited |
| Weight incl. engine |
44 kg |
| Rope diameter |
11,2 mm |
| Effective rope breaking load |
80 kN |
| Drive motor 2-stroke engine |
STIHL MS 660 |
| Power |
5,2 kW / 7,1 PS |
|
HIT-TRAC 16 B without rope
|
Article no.
|
| For rope diameter 11,2 mm |
07016/11 |
Only available with engine, since the engine is specially produced and converted for our HIT-TRAC 16 B.
Important: We recommend rope diameter 11,2 mm for lifting, pulling and lowering with safety factor 5.
|
| |
Wire ropes on reel
Diameter
Weight |
11,2 mm
0,49 kg/m |
| Length in m |
Article no. |
| 20 |
07326 |
| 25 |
07312 |
| 30 |
07313 |
| 40 |
07314 |
| 50 |
07315 |
| 60 |
07316 |
| 70 |
07317 |
| 80 |
07318 |
| 90 |
07319 |
| 100 |
07320 |
| 150 |
07321 |
| 200 |
07322 |
| 300 |
07323 |
|
Wire rope configured
with thimble, an eyelet hook and locking bar on one end and a pointed end on the other.
Other lengths and configurations on request. |
|
|
| Accessories for HIT-TRAC 16 B |
|

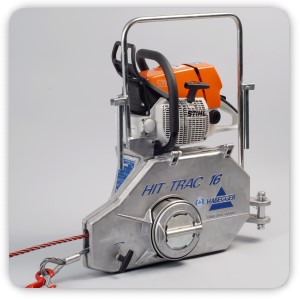

Carrying handle
Article no. 07668
|
|
| |
