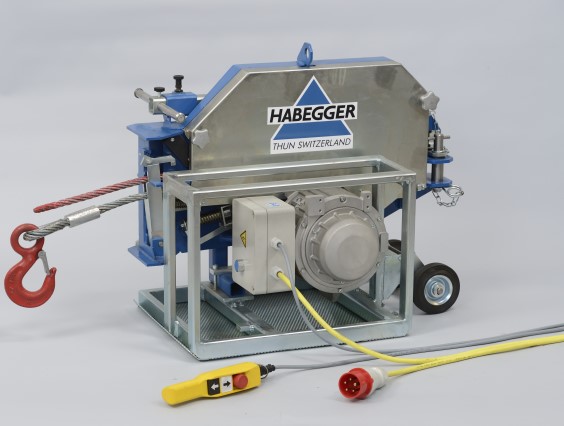

HABEGGER HIT-TRAC 32 E

The professional wire rope pulling machine for pulling loads up to 3,2 tonnes directly.



Leaflet

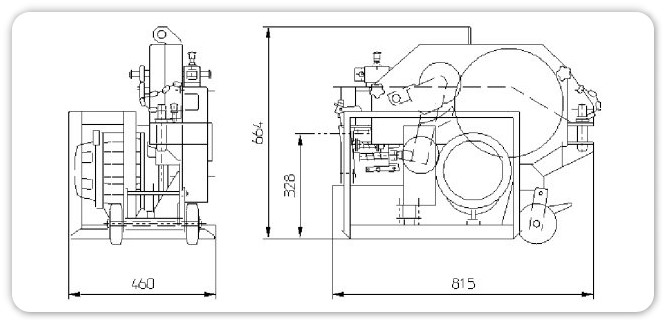

Dimension sheet




Technical Data HIT-TRAC 32 E
Rated force (pulling, lifting, lowering) 3200 kg
Overload protection by thermocouple
Rope speed max. 5 m/min.
Rope length unlimited
Weight incl. engine 160 kg
Rope diameter 16 mm
Effective rope breaking load 194 kN
3-phase AC Drive motor 50 Hz / 400 V, 6,8A
Power 3 kW
Intermittent duty 30 %
HIT-TRAC 32 E without rope
 Article no.
Standard machine 08230
with variable rope pulling speed on request
with intermittent duty 100 % on request
Tensioning rope Ø 16 mm compacted on request
