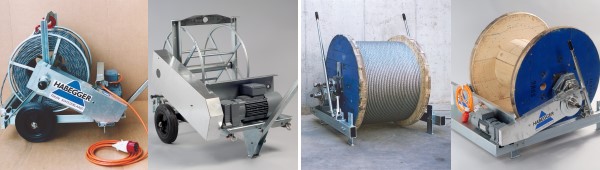

HABEGGER reel drive 4 and 6

The motor can be switched on continuously. It pulls with a force of about 20 kg depending of the diamter at the reel. Depending the rope force the rope gets wind up or unwind.
No automatical winding system.

Leaflet



alt
Reel drive 4 Reel drive 6
Dimension sheet Dimension sheet


Technical Data Reel drive 4
 Reel drive 6
Capacity for wire rope rope Ø 8 mm = max. 600 m
rope Ø 11 mm = max. 300 m		 Reel up to Ø 1,2 m
Speed 0 - 10 m/min 0 - 5 m/min
Drive electric motor electric motor
Voltage 3 x 400 V 3 x 400 V
Current 0.2A 0.2A
Weight without rope 70 kg 162 kg
Unit without rope
 Reel drive 4
 Reel drive 6
Article no. 00395 01651
