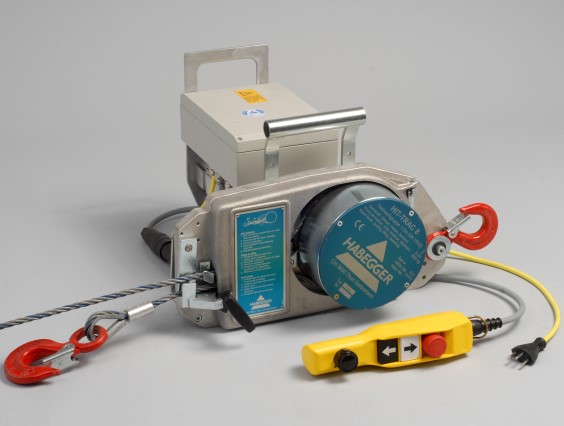

HABEGGER HIT-TRAC 8 E
A new and super light power-driven rope pulling machine for lifting, pulling and lowering with unlimited rope length.
|
|
 Leaflet
Dimension sheet
|
| |
| Technical Data |
HIT-TRAC 8 E |
| Rated force (pulling, lifting, lowering) |
800 kg |
| Overload protection thru current limit |
at approx. 20% overload |
| Rope speed |
1-6 m/min |
| Rope length |
unlimited |
| Weight incl. engine |
32 kg |
| Rope diameter |
8,2 mm |
| Effective rope breaking load |
50 kN |
| Electric drive motor |
50 Hz / 230 V, 10A |
| Power |
1 kW |
| Intermittent duty |
30 % |
Article no. (unit without rope)
|
06151 |
|
| |
| |
Wire rope on reel
Diameter
Weight |
8,2 mm
0,25 kg/m |
| Length in m |
Article no. |
| 20 |
07298 |
| 25 |
07299 |
| 30 |
07303 |
| 40 |
07304 |
| 50 |
07305 |
| 60 |
07306 |
| 70 |
07307 |
| 80 |
07308 |
| 90 |
07309 |
| 100 |
07310 |
| 150 |
07311 |
| 200 |
07582 |
| 300 |
07583 |
|
Wire rope without reel
Diameter
Weight |
8,2 mm
0,25 kg/m |
| Length in m |
Article no. |
| 10 |
07577 |
| 15 |
07578 |
| 20 |
07579 |
|
Wire rope configured
with thimble, an eyelet hook and locking bar on one end and a pointed end on the other.
Other lengths and configurations on request. |
| |
| Accessories for HIT-TRAC 8 E |
|

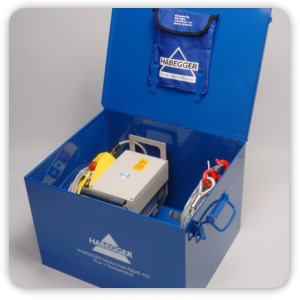

Storage box
520 x 440 x 360 mm
Article no. 06231
|
