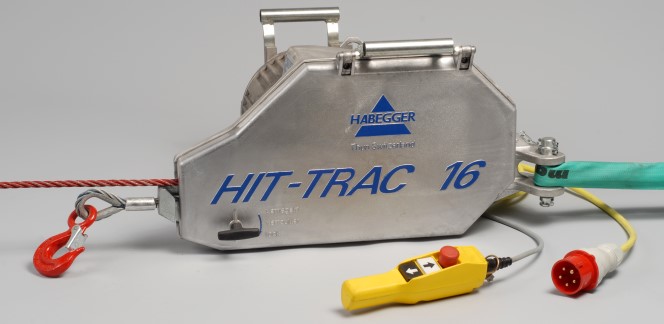

HABEGGER HIT-TRAC 16 E
The HIT-TRAC 16 E with electric motor lifts and lowers loads smoothly at the push of a button.
|
|
 Leaflet

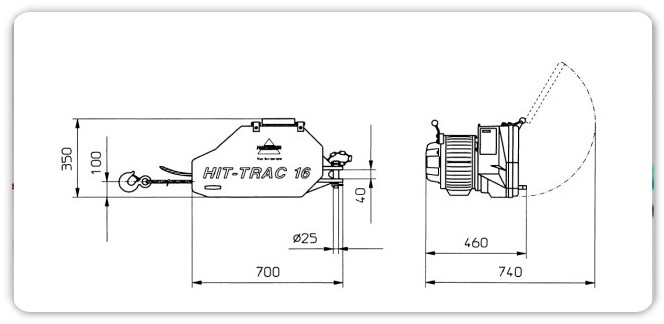

Dimension sheet
|
| Technical Data |
HIT-TRAC 16 E |
| Rated force (pulling, lifting, lowering) |
1600 kg |
| Overload protection by thermocouple |
|
| Rope speed |
about 10 m/min |
| Rope length |
unlimited |
| Weight incl. engine |
58 kg |
| Rope diameter |
11,2 mm |
| Effective rope breaking load |
80 kN |
| 3-phase AC Drive motor |
50 Hz / 400 V, 6,8A |
| Power |
3 kW |
| Intermittent duty |
30 % |
|
HIT-TRAC 16 E without rope
|
Article no.
|
| For rope diameter 11,2 mm |
07216/11 |
Important: We recommend rope diameter 11,2 mm for lifting, pulling and lowering with safety factor 5.
|
| |
Wire ropes on reel
Diameter
Weight |
11,2 mm
0,49 kg/m |
| Length in m |
Article no. |
| 20 |
07326 |
| 25 |
07312 |
| 30 |
07313 |
| 40 |
07314 |
| 50 |
07315 |
| 60 |
07316 |
| 70 |
07317 |
| 80 |
07318 |
| 90 |
07319 |
| 100 |
07320 |
| 150 |
07321 |
| 200 |
07322 |
| 300 |
07323 |
|
Wire rope configured
with thimble, an eyelet hook and locking bar on one end and a pointed end on the other.
Other lengths and configurations on request. |
|
|
| |
| HIT-TRAC 16 E with variable pulling speed |
only available in tubular frame
|
for rope Ø
11,2 mm
|
| Speed |
2 - 8 m/min |
| Weight |
80 kg |
| Article no. |
07215/11 |
|
| |
| Accessories for HIT-TRAC 16 E |
|
Control box guard
Article no. 07694
|
|
|

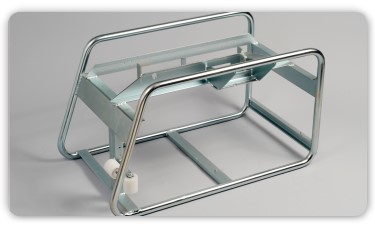

Tubular frame
Article no. 07252
Weight: 14 kg
Your power-driven rope pulling machine stands a few centimetres above the floor and is protected during transport
and in use.
|
| |
